November 04, 2014

IPR Spotlight Series: Navigating IPR Discovery

8 min

IPR Spotlight Series: Navigating IPR Discovery

Inter partes review (IPR) before the Patent Trial and Appeal Board (PTAB) became available on September 16, 2012 as a post-grant review procedure to challenge the patentability of issued claims based on prior art patents and publications. To help navigate the uncharted waters of this procedure, each edition of IP Buzz - Post Grant Practice will include an installment of our new IPR Spotlight Series, where we will feature a specific event on the IPR timeline, from filing the petition for IPR through oral hearing and final written decision. We will present an overview of the featured filing or procedure, along with practice tips and strategy informed by recent PTAB decisions, statistics, and practical experience. In our fifth IPR Spotlight installment, we focus on navigating IPR discovery.

Part 5: Navigating IPR Discovery

The America Invents Act (AIA) offers very limited discovery in IPR proceedings, including "the deposition of witnesses submitting affidavits or declarations" and "what is otherwise necessary in the interest of justice."[1] The PTAB has interpreted these provisions to cover three categories of discovery: (1) mandatory initial disclosures;[2] (2) routine discovery;[3] and (3) additional discovery.[4] In addition, a party may move to compel discovery from third parties.[5]

On September 30, 2014, the PTAB issued guidelines on routine and additional discovery, in an article by Administrative Patent Judges Jacqueline Bonilla and Sheridan Snedden. The article explains the difference between routine and additional discovery, and delineates the PTAB's considerations when deciding whether to grant motions for additional discovery.

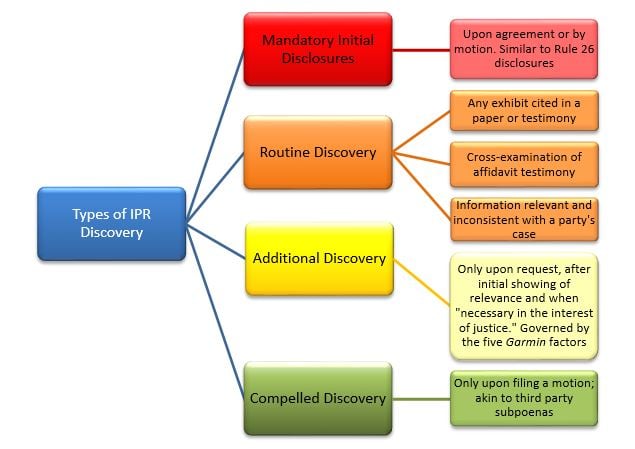

This installment of the IPR Spotlight Series sets out the three categories of discovery, plus third-party discovery in IPR, along with the PTAB's recent guidance on routine and additional discovery.  The figure below depicts the types of discovery available in IPR.

Mandatory Initial Disclosures

The term "mandatory initial disclosure" is somewhat misleading because this type of disclosure is not mandatory at all; in fact, the parties must agree on mandatory discovery and file a notice with the PTAB indicating which form of initial discovery the parties have agreed upon.[6] This notice must be filed before the deadline for the patent owner to file its preliminary response in order for initial disclosures to be used at all. [7] Once trial is instituted, the parties may then automatically take discovery of information identified in the initial disclosures.[8] As a result, initial disclosures are the least used of the three categories of discovery.

Initial disclosures come in two forms:

    1) Both parties disclose identities of individuals likely to have discoverable information and provide documents they may use to support defenses; and
    2) If the IPR petition raises obviousness, the petitioner must make disclosures regarding objective evidence.[9]

If the parties fail to reach an agreement, the parties "may seek the mandatory discovery … by motion."[10] Mandatory initial disclosures are similar in scope to Rule 26 initial disclosures in civil litigation.[11] The PTAB has an upcoming article that will provide additional guidance on mandatory initial disclosures.

Routine Discovery

Routine discovery is automatic and does not require a motion or requests for discovery.[12] Instead, the producing party has the obligation to provide the material on its own.[13] Routine discovery includes:

    1) Any exhibit cited in a paper or in testimony in the case. A party must serve these exhibits at the same time it serves the paper or testimony citing to them. This category is limited to the evidence actually cited, not materials that the party or witness relies upon when preparing the paper or testimony.[14]
    2) Cross-examination of affidavit testimony. A party relying on a witness's testimony by declaration or affidavit must make that witness available for cross-examination.[15] The burden and expense of producing a witness for cross-examination falls on the party presenting the witness.[16] The rules allow very long deposition time limits: seven hours for cross-examination, four hours for redirect examination, and two hours for re-cross examination.[17]
    3) Information that is relevant and inconsistent with a party's case, which must be served concurrently with the filing of documents or things that contain the inconsistency.[18] A party typically seeks inconsistent information via document request, although interrogatories and requests for admission may also be used.[19] This category excludes privileged materials, and is "not broadly directed to any subject area in general within which the requesting party hopes to discovery such inconsistent information."[20]

Additional Discovery

Parties may also agree to additional discovery, beyond routine discovery.[21] If the parties cannot reach agreement, then a party must request additional discovery.[22] However, the PTAB grants very limited additional discovery when it is granted at all. A preliminary showing of relevance is necessary.[23] In order to determine whether additional discovery in an IPR proceeding is "necessary in the interest of justice," the PTAB uses a five-factor test set forth in Garmin International Inc. et al. v. Cuozzo Speed Technologies LLC:[24]

    1) More Than a Possibility and Mere Allegation. The mere possibility of finding something useful, and mere allegation that something useful will be found, are insufficient to demonstrate that the requested discovery is necessary in the interest of justice. The party requesting discovery should already be in possession of evidence tending to show beyond speculation that in fact something useful will be uncovered.
    2) Litigation Positions and Underlying Basis. Asking for the other party's litigation positions and the underlying basis for those positions is not necessarily in the interest of justice.
    3) Ability to Generate Equivalent Information by Other Means. Information a party can reasonably figure out, generate, obtain, or assemble without a discovery request would not be in the interest of justice.
    4) Easily Understandable Instructions. The requests themselves should be easily understandable. For example, ten pages of complex instructions is prima facie unclear.
    5) Requests Not Overly Burdensome To Answer. The Board considers financial burden, burden on human resources, and burden on meeting the time schedule of the review. Requests should be sensible and responsibly tailored according to a genuine need.

Under this standard, the PTAB has granted approximately 40% of motions for additional discovery.[25]  The PTAB's current policy on additional discovery has been a primary focus of the USPTO's "Request for Comments on Trial Proceedings Under the America Invents Act Before the Patent Trial and Apply Board."

Under the current standard, parties seeking additional discovery should draft narrow and clearly stated requests. In addition, parties must demonstrate that the information sought exists, and materially affects the party’s position in the IPR proceeding. For example, in Corning Inc. v. DSM IP Assets B.V., the PTAB granted a request for laboratory notebooks, where the details of procedures were per se useful when a petitioner cited expert testimony that relied upon those details to demonstrate unpatentability.[26]

Compelled Discovery

Under 37 C.F.R. § 42.52, a party may also file a motion to obtain "compelled discovery," akin to a subpoena, consisting of documents and testimony from third parties. The requesting party must first make a motion for authorization to the PTAB and identify the witness and any request documents.[27] If a motion to compel is granted, the testimony may be (1) ex parte subject to cross-examination or (2) inter partes.[28]

Keeping Discovery Limited

The PTAB has emphasized that AIA trials were created as "a cost-effective alternative to litigation," and therefore public policy dictates limiting discovery in these proceedings. The PTAB article noted the benefits of "lowering costs, minimizing complexity, and shortening periods required for dispute resolution," along with meeting the one-year statutory deadline for completing AIA Trials.  Unlike district court patent litigation, parties in IPR proceedings must use requests for additional discovery sparingly, and narrowly tailor any requests that are made.  For defendants accused of patent infringement in district court litigation, participating only in limited discovery that focuses primarily on prior art documents and declarants in support of a patent position is a great advantage.  In comparison, the broad and expensive discovery in district court litigation almost always proves more burdensome for the defendant than the patent owner plaintiff. Venable will continue to monitor potential change in response to the USPTO's request for comments, as well as additional guidance from the PTAB.

[1] 35 U.S.C. § 316(a)(5).
[2] 37 C.F.R. § 42.51(a).
[3] 37 C.F.R. § 42.51(b)(1).
[4] 37 C.F.R. § 42.51(b)(2).
[5] 37 C.F.R. § 42.52.
[6] 37 C.F.R. § 42.51(a)(1).
[7] 37 C.F.R. § 42.51(a)(1)(i).
[8] 37 C.F.R. § 42.51(a)(1)(ii).
[9] Office Trial Practice Guide, 77 Fed. Reg. 48761-62. (Aug. 14, 2012).
[10] 37 C.F.R. § 42.51(a)(2).
[11] Office Trial Practice Guide, 77 Fed. Reg. 48761-62. (Aug. 14, 2012).
[12] See BlackBerry Corp. et al. v. Wi-Lan USA Inc., IPR2013-00126, Paper 15 at 2 (Aug. 19, 2013).
[13] 37 C.F.R. § 42.51(b)(1).
[14] See Blackberry Corp. et al. v. Wi-Lan USA Inc., IPR2013-00126, Paper 15 at 2 (Aug. 19, 2013).
[15] 37 C.F.R. § 42.51(b)(1)(ii).
[16] 37 C.F.R. § 42.53(g).
[17] 37 C.F.R. § 42.53(c)(2).
[18] 37 C.F.R. § 42.51(b)(1)(iii).
[19] Id.
[20] See Garmin Int'l Inc. et al. v. Cuozzo Speed Techs. LLC, IPR2012-00001, Paper 26 at 4 (March 5, 2013).
[21] 37 C.F.R. § 42.51(b)(2)(i).
[22] Id.
[23] See, e.g., Square Inc. v. REM Holdings 3 LLC, IPR2014-00312, Paper 23 at 4-5 (Sept. 15, 2014).
[24] IPR2012-00001, Paper 20 at 2-3 (Feb. 14, 2013).
[25] Calculated on November 24, 2014 using DocketNavigator.
[26] IPR2013-00043, Paper 27 at 4-7 (June 21, 2013).
[27] 37 C.F.R. § 42.52(a).
[28] Office Trial Practice Guide, 77 Fed. Reg. 48671 (Aug. 14, 2012).
